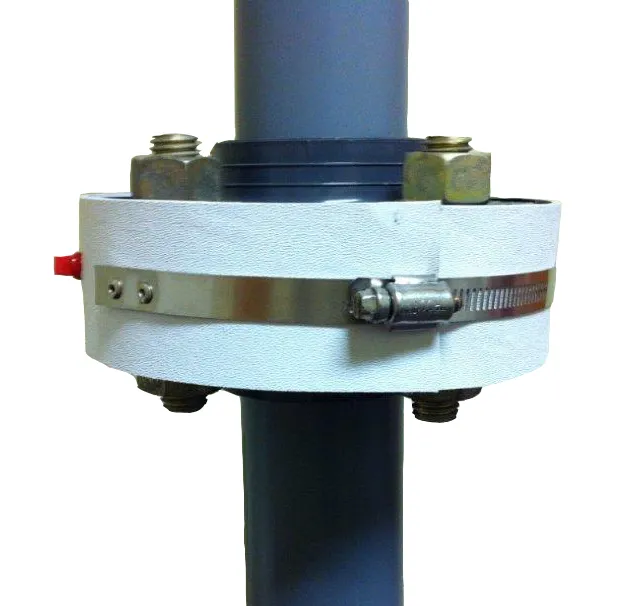

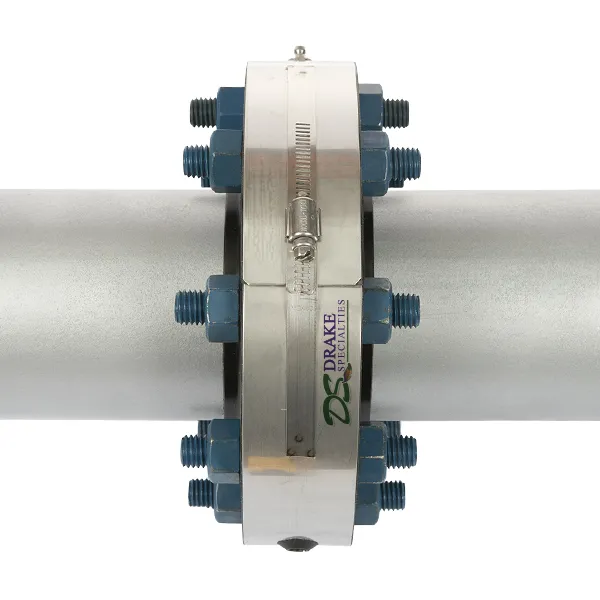

Flange Band Protectors
Flange Protectors enclose the flange and internals, providing protection from salt spray, sand, chemicals, and other rust causing external factors. For a complete flange protection system, including Drake Specialties Flange Band protectors, in conjunction with Nut/Bolt protectors and grease, is recommended.
- Constructed of 316 or 304 stainless steel, 316 stainless steel worm gear clamp, 316 stainless steel injection fitting with gasket liner of closed cell neoprene
- Designed to cover flanges to protect flange faces, stud bolts, and gaskets from corrosion
- Keeps moisture, chemicals, saltwater, acid rain etc. out
- Quickly installed with a screwdriver
- Available for all size flanges and custom engineered designs available per application.
- Available in 2″ and 3″ wide bands
- Gasket liner of closed cell neoprene, maximum operating temperature of 250°F
- Optional EPDM rubber gasket liner, maximum operating temperature of 270°F
- Optional safety relief valve bleeds at 5 PSI
- Optional liner of PTFE or silicone for chemical and high temperature applications
- Optional Kydex which is a High performance plastic/ Kydex is fire retardant, rigid, and has a high impact resistance
Benefits of Drake Flange Band Protectors include:
- Envelopes flange and flange internals to prevent corrosion.
- Maintains integrity of gasket and seal.
- Keeps out moisture, chemicals, saltwater, debris, etc.
- Ensures cathodic isolation protection by keeping foreign matter out of flange gap.
- Quickly installed with a screwdriver.
- Available for all size flanges.
- Custom engineered designs available per application
Construction of Drake Flange Band Protectors:
- 316 Stainless Steel band or Kydex® plastic.
- 316 Stainless Steel Zerk injection fittings.
- Stainless Steel worm gear clamps, rivets, & washers.
- Plastic vent plug.
- Closed cell neoprene liner for temperatures up to 250°F.
- Optional EPDM rubber liner for temperatures up to 270°F.
- Optional safety relief valve, 4-5 PSI.
- Optional PTFE or silicone liner for chemical and high temperature applications.
